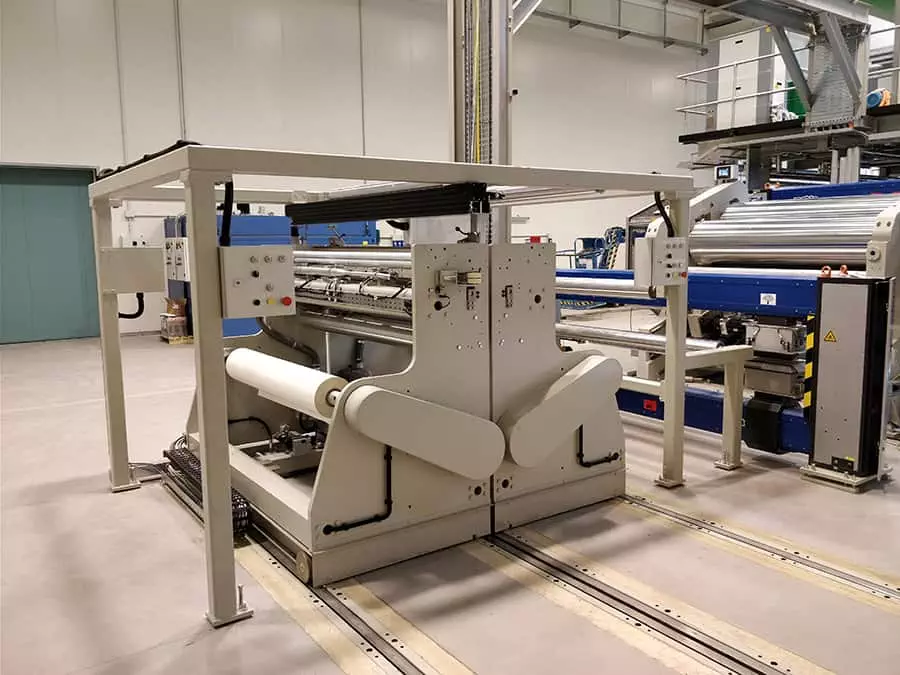

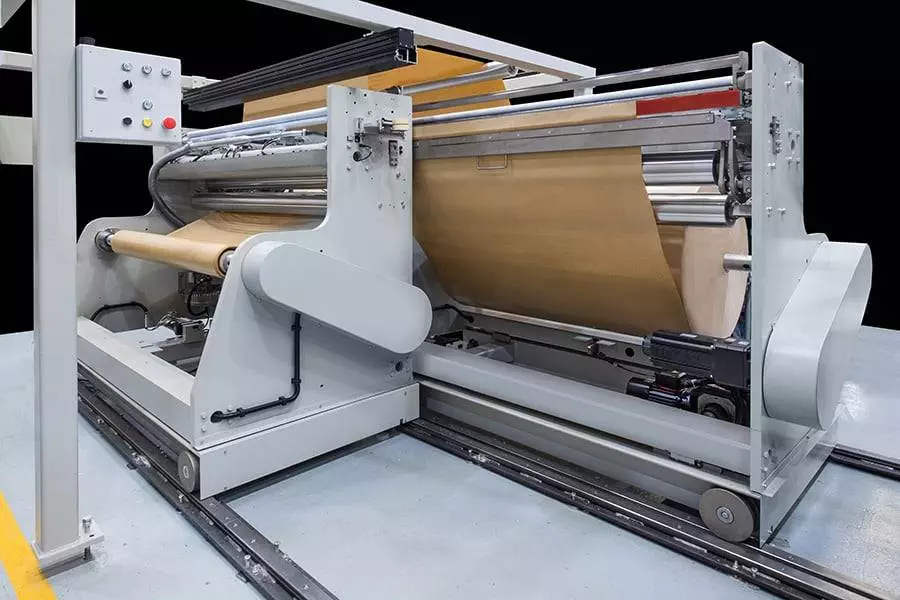

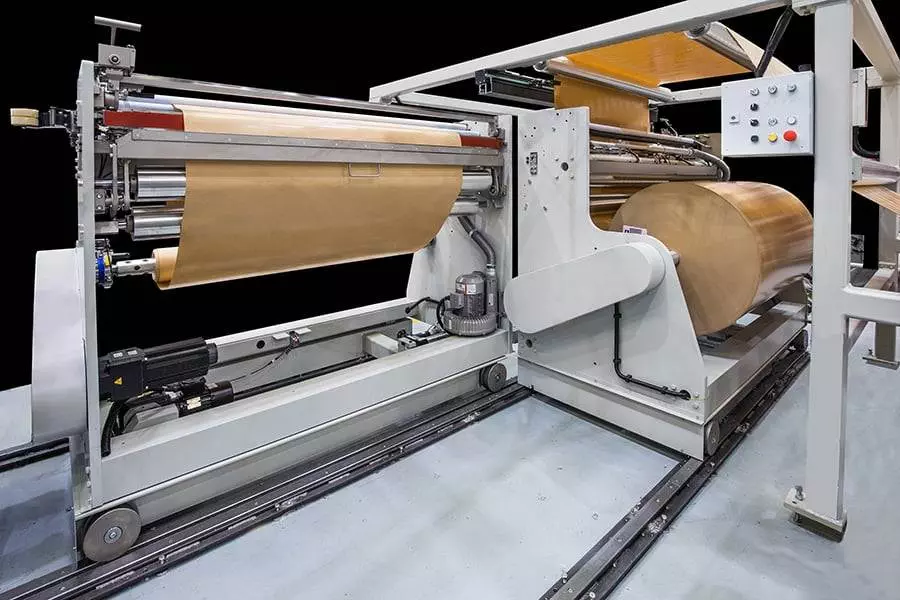

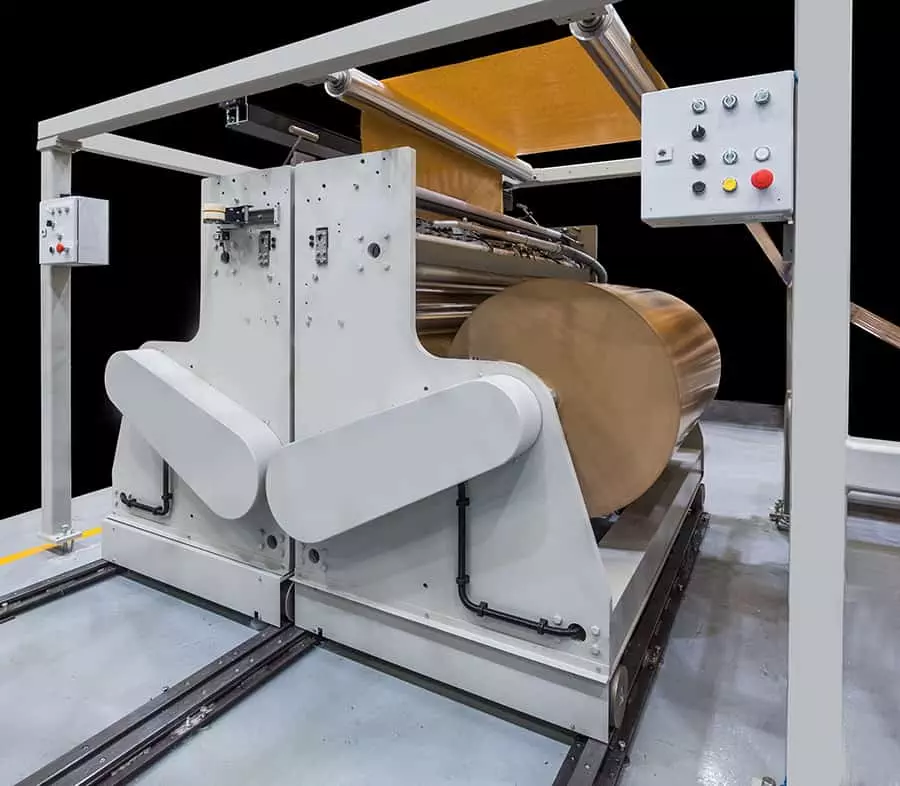

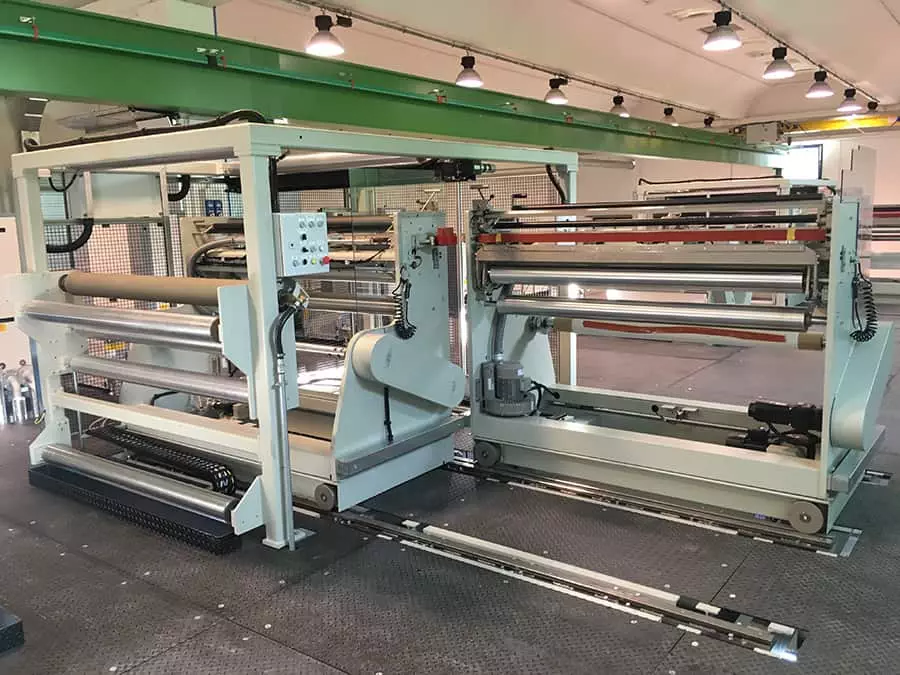

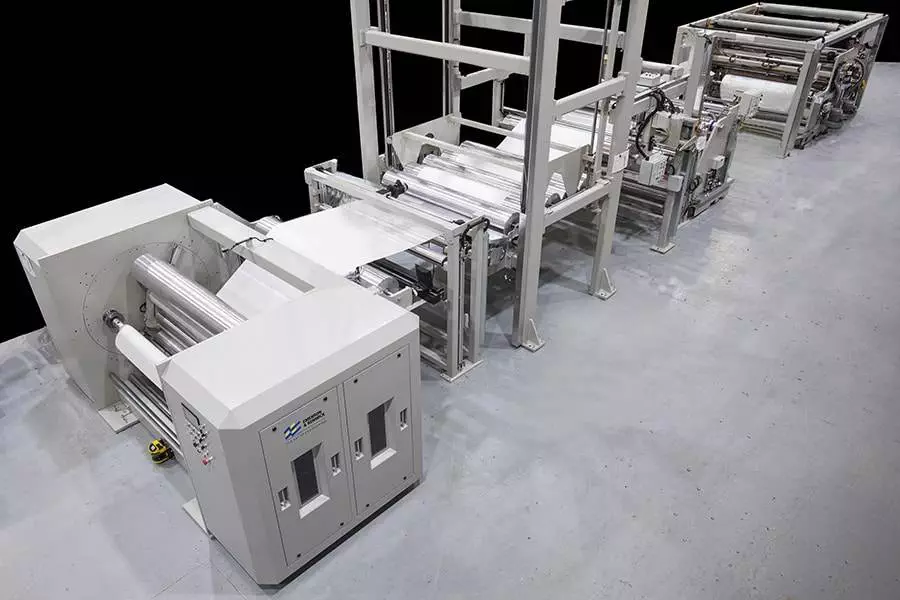

Series Winders

+ Leading Edge Technology Series Winders

E+R’s Series Winder Platform offers a wealth of innovation and experience, especially in the handling of challenging webs and materials.

We recognise that without optimum web transport and winding conditions, no process solution can provide the best quality product.

A key element in the web transport system is the ability to unwind and rewind the materials being processed, so we can provide you with the best terminal equipment for your own requirements.

Best Series Winders

Key Features:

  • From simple, single spindle, manual splicing designs to multi- axis, fully automatic reel changing systems

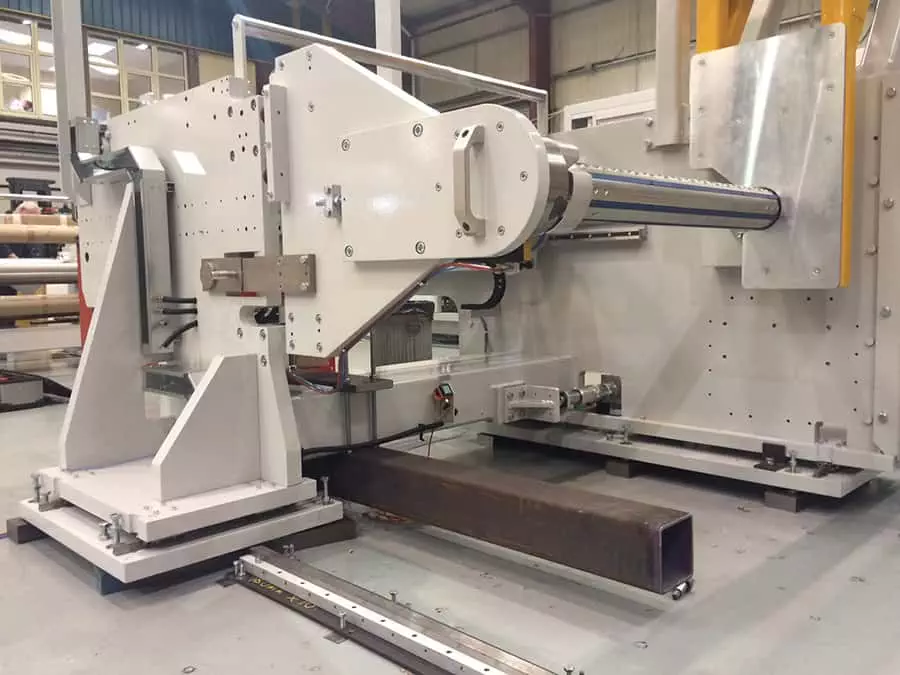

  • Shaftless / Shafted / Cantilevered designs
  • 300mm – >3000mm widths
  • Reel sizes up to > 2000mm diameter
  • Centre or Surface & Combined Centre / Surface Drives

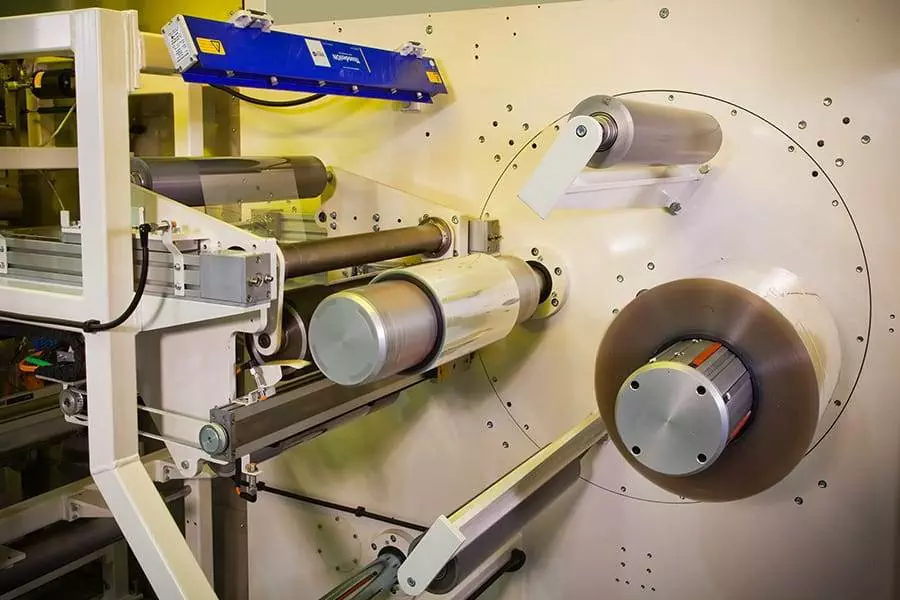

  • Fixed spindle and Turreting styles
  • Closed loop, automatic tension control by dancer or load cell rollers

Cleanroom Operation Capability:

  • Flying Splice - fully automatic
  • Zero-speed Splicers
  • Lap Splice
  • Butt Splice
  • In-Register Splice
  • Vertical & Horizontal Accumulation
  • Fully Automatic Operation

Get in touch
Series Winders

+ Custom development for all Winders, Unwinders and Rewinders.

Our objective is to provide you with the ultimate Winder, Unwinder or Rewinder solution that completely matches your needs, so our engineers will work with you from the concept stage to ensure you have the best possible design.

We develop and manufacture world-class pilot + production coating and laminating equipment.

+ Engineering Capabilities

Experienced mechanical and electrical assembly and installation engineers

  • Wide experience across diverse range of applications
  • Mechanical assembly, set-up and calibration of machine sections in-house
  • In-house panel build for control cubicles

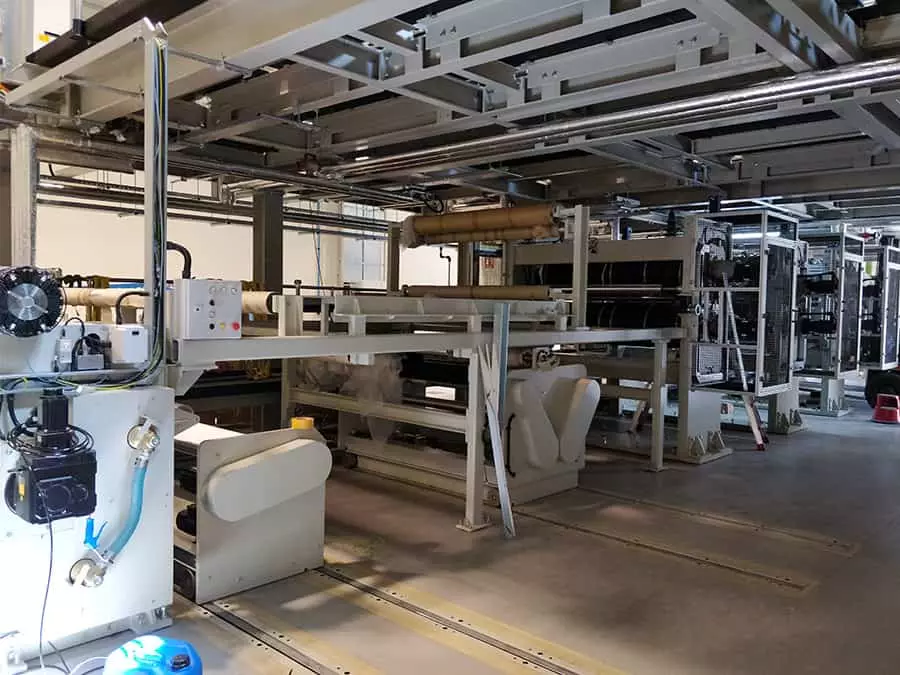

  • Installations completed globally, turn-key start-ups possible

Machine shop for the manufacture of key components

  • Equipment portfolio focussed on key elements of machinery – machine frames and ties, rollers, precision components
  • Early/late shift pattern
  • Complete ‘ownership’ of critical components

 Tool room for manufacture of precision components

  • Precision equipment – wire EDM, CNC grinding and finishing
  • Precision inspection and component validation equipment – CMM, Jodon etc.

Certified to ISO 9001: 2015 quality system

  • Component inspection and quality validation
  • Assembly validation and sign-off at FAT and SAT
  • View our Quality Policy Click here

+ Manufacturing Capabilities

Experienced mechanical and electrical/control engineering team

  • 18 full-time engineers
  • Web transport, roller design, web guiding, spreading etc.
  • Drying technologies
  • Coating technologies
  • Machinery sub-systems – pneumatics, hydraulics, cooling systems, vacuum

Mechanical design in 3D drafting system with sophisticated FEA

  • Complex stress analysis of vacuum vessels ensures optimal design
  • Stress deflection analysis for optimal precision and accuracy

Full control systems design – hardware and software

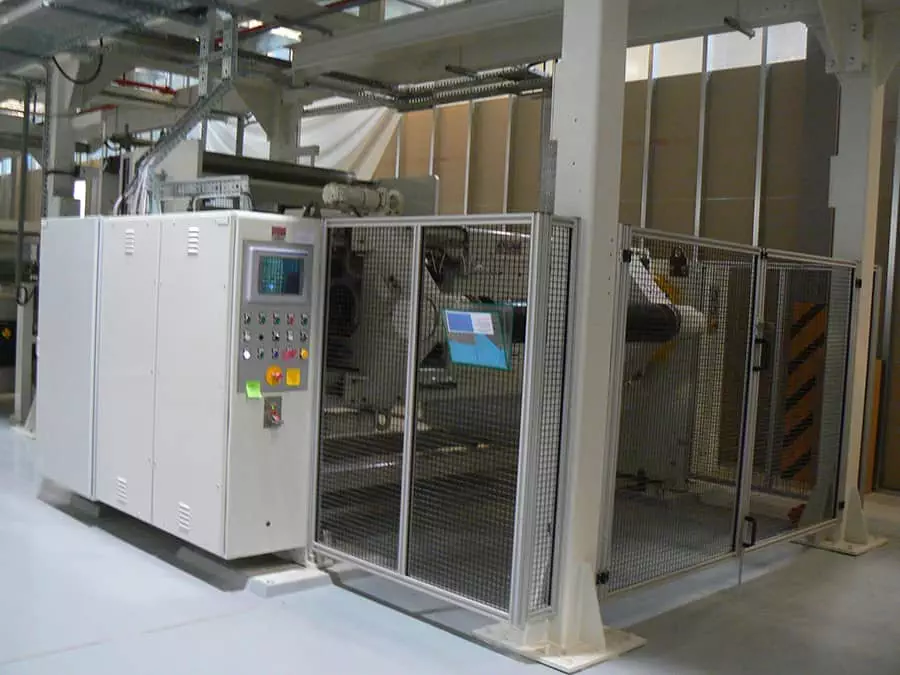

  • Electrical control cubicles, HMI and operator pendants
  • Wide variety of vendors – Rockwell, Siemens, Bosch Rexroth, Mitsubishi etc.
  • Fully compliant safety systems
  • Software design and implementation
  • Complex drive algorithms – registration, dynamic positioning, tension sensitivity and processing
  • Testing and commissioning of systems by E+R staff
