+ Tooling System for Heat exchanger, forming

Our engineers will work with you to provide the ultimate solution tailored to your needs.

We have world-leading capabilities to manufacture new fin and tube tooling, to regrind existing fin tooling and to produce tooling for sample and prototype production.

  • The latest CNC machinery and a highly skilled and experienced team

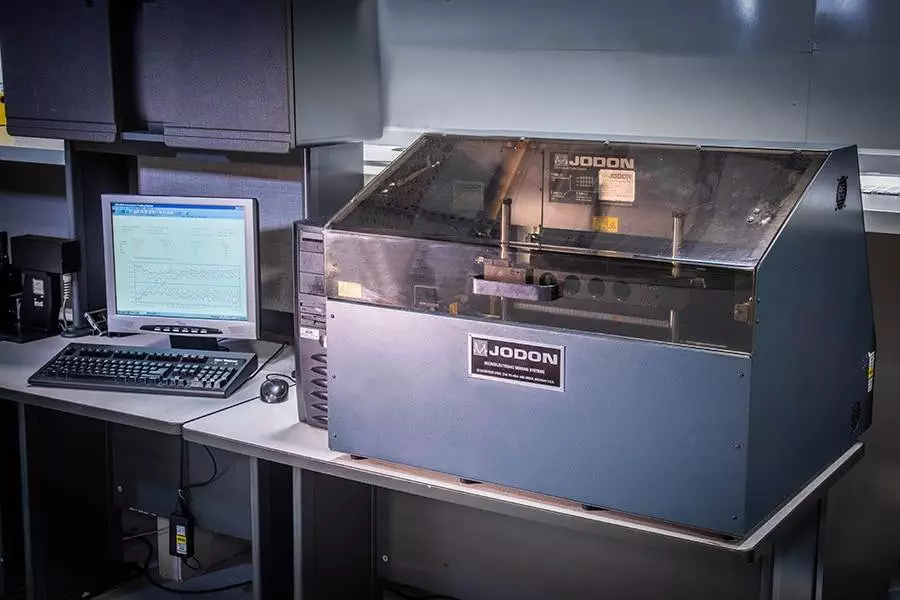

  • All tooling is fully tested and verified for compliance on site prior to shipment, using Jodon-certified measuring equipment
  • Microscopic tube inspections performed - digital imaging of sample parts for measurement analysis and reporting
  • All tooling manufactured, assembled and tested in a dedicated, temperature-controlled environment
  • Over 20 years’ experience designing and manufacturing B type, multiport, lap seam and CAC tube tooling
  • A complete tooling solution - including all change parts necessary to suit E&R, FMC or any competitor fin and tube mill
  • Reduce lead times and simplify supply with new and regrind tooling used to produce certified sample parts on our machinery
  • Reduce material costs and increase future flexibility with tube mill tooling using carbide inserts for high wear areas only

Get in touch to find out more or discover how we can work together to create a tailored solution that completely matches your needs.

Get in touch
Fin Mill

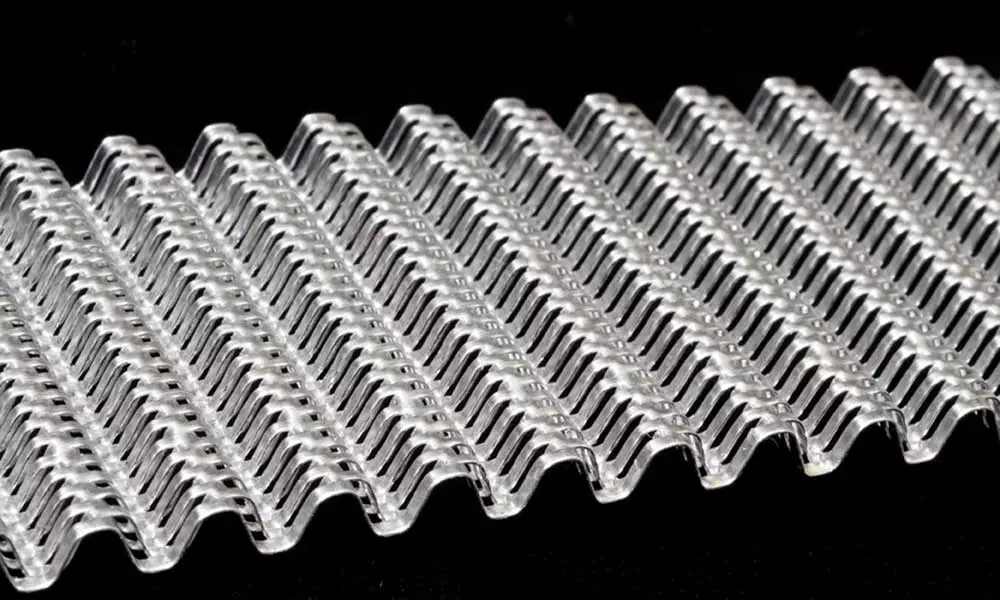

Rolled oil cooler fin

Rolled oil cooler Fin

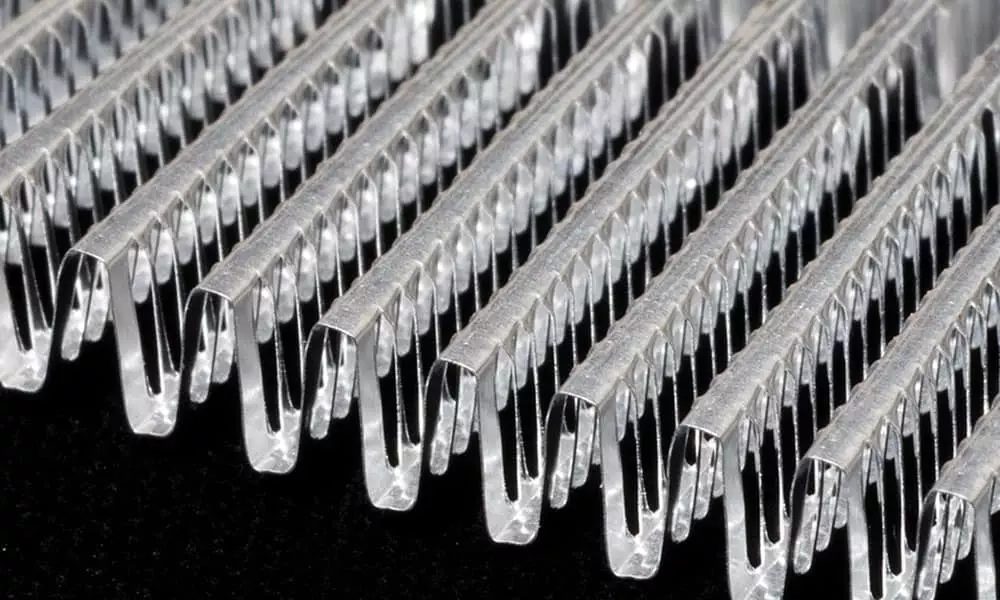

Fin Range

Fin Range

Folded Tubes

Folded Tubes

Rolled Turbulator

Rolled Turbulator

+ Custom development for all Heat Exchange applications

Our objective is to provide you with the ultimate solution that completely matches your needs, so our engineers will work with you from the concept stage to ensure you have the best possible design.

We are able to design and manufacture a range of form and tube mill rolls to suit your machinery irrespective of the origin or type. We will regrind or remake your existing rolls either in HSS or Carbide, the choice is yours.

Advanced Forming Machinery, Tube Forming Machinery & Heat Exchanger development

+ Engineering Capabilities

Experienced mechanical and electrical assembly and installation engineers

  • Wide experience across diverse range of applications
  • Mechanical assembly, set-up and calibration of machine sections in-house
  • In-house panel build for control cubicles
  • Installations completed globally, turn-key start-ups possible

Machine shop for the manufacture of key components

  • Equipment portfolio focussed on key elements of machinery – machine frames and ties, rollers, precision components
  • Early/late shift pattern
  • Complete ‘ownership’ of critical components

 Tool room for manufacture of precision components

  • Precision equipment – wire EDM, CNC grinding and finishing
  • Precision inspection and component validation equipment – CMM, Jodon etc.

Certified to ISO 9001: 2015 quality system

  • Component inspection and quality validation
  • Assembly validation and sign-off at FAT and SAT
  • View our Quality Policy Click here

+ Manufacturing Capabilities

Experienced mechanical and electrical/control engineering team

  • 18 full-time engineers
  • Web transport, roller design, web guiding, spreading etc.
  • Drying technologies
  • Coating technologies
  • Machinery sub-systems – pneumatics, hydraulics, cooling systems, vacuum

Mechanical design in 3D drafting system with sophisticated FEA

  • Complex stress analysis of vacuum vessels ensures optimal design
  • Stress deflection analysis for optimal precision and accuracy

Full control systems design – hardware and software

  • Electrical control cubicles, HMI and operator pendants
  • Wide variety of vendors – Rockwell, Siemens, Bosch Rexroth, Mitsubishi etc.
  • Fully compliant safety systems
  • Software design and implementation
  • Complex drive algorithms – registration, dynamic positioning, tension sensitivity and processing
  • Testing and commissioning of systems by E+R staff

+ Advanced Forming Solutions

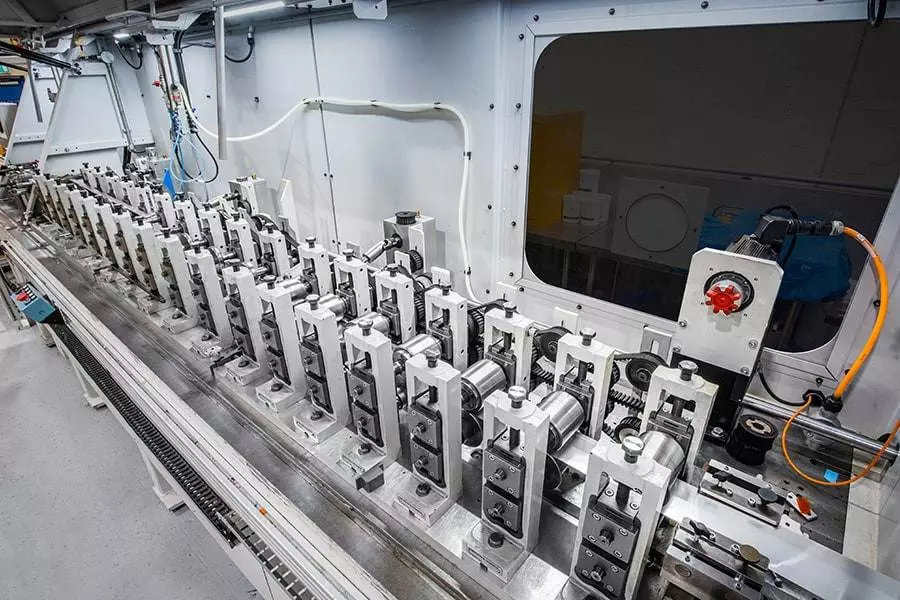

Tube Mill Machine

+ Tube Mill

Runs at 150 metres and 300 cuts per minute. Quick changeover – change from one model to another easily within 30 minutes.

Read More

Tube Collection Systems

+ Tube Collection Systems

Designed to collect folded tubes for storage in trays or paper band tubes at up to 300 tubes/min. Accommodates tube lengths from 130mm – 1200mm.

Read More

Turbulator Machine

+ Turbulator Machine

Robust and flexible machine capable of up to 310mm strip width and 150 cuts/min.

Read More

Fin Mill Machine

+ Fin Mill

Capable of single or twin lane operation and up to 75 cuts and 250 per minute. Built to exacting standards with both single and twin track production.

Read More

CAC Tube Mill

+ CAC Tube Mill

Designed to be flexible - has a sub plate design to allow for quick changeovers between different products. Capable of producing tubes up to 100mm high.

Read More

Tube Tooling

+ Tooling

World-leading capabilities for new heat exchanger, fin and tube tooling. Our engineers will work with you to provide the ultimate solution.

Read More

Fin / Tube Insertion

+ Fin / Tube Insertion

Systems available to suit CAC or ATOC fin / tube insertion. CAC tubes up to 60 tubes/min, ATOC tubes with 2 internal fins 20 tubes/min.

Read More

Core Assembly / Core Builder

+ Core Assembly / Core Builder

Manual output machine and fully automated solutions available.

Read More

+ Have you got a question for our Forming Team?

Please fill in your details below and a member of our dedicated team will be in touch. Please complete as much information as you so that we can make sure the right person picks up your enquiry.

+ Forming Technical Articles

Our team has a wealth of knowledge and expertise built up over decades of experience in their fields of specialism. Read our technical articles to find out how we have used this expertise, with creative problem solving and critical thinking, to meet and surpass our customers’ needs.
