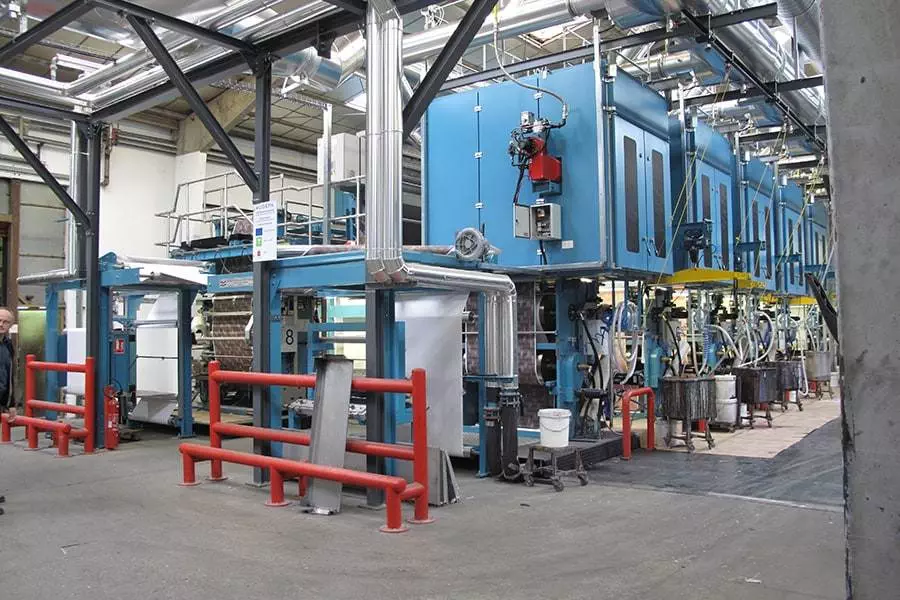

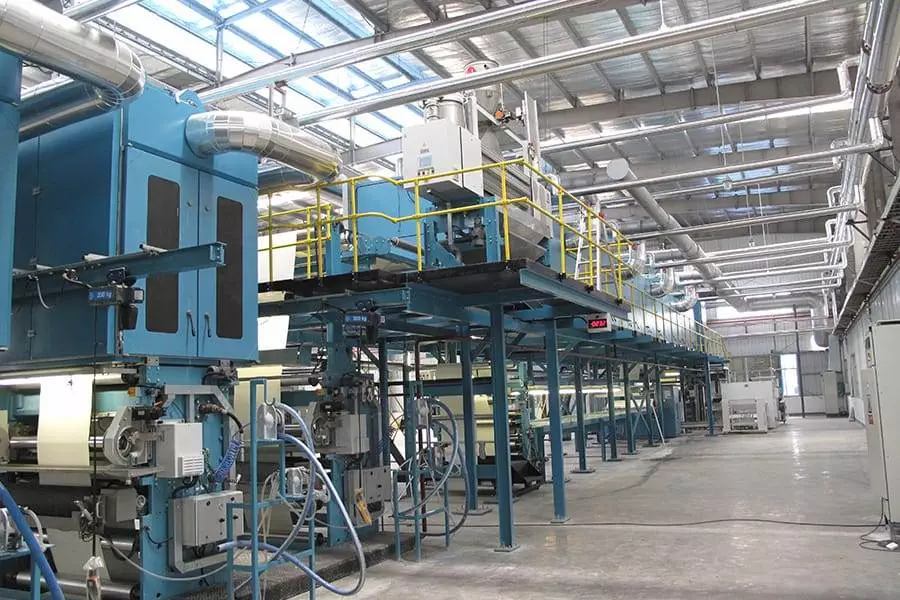

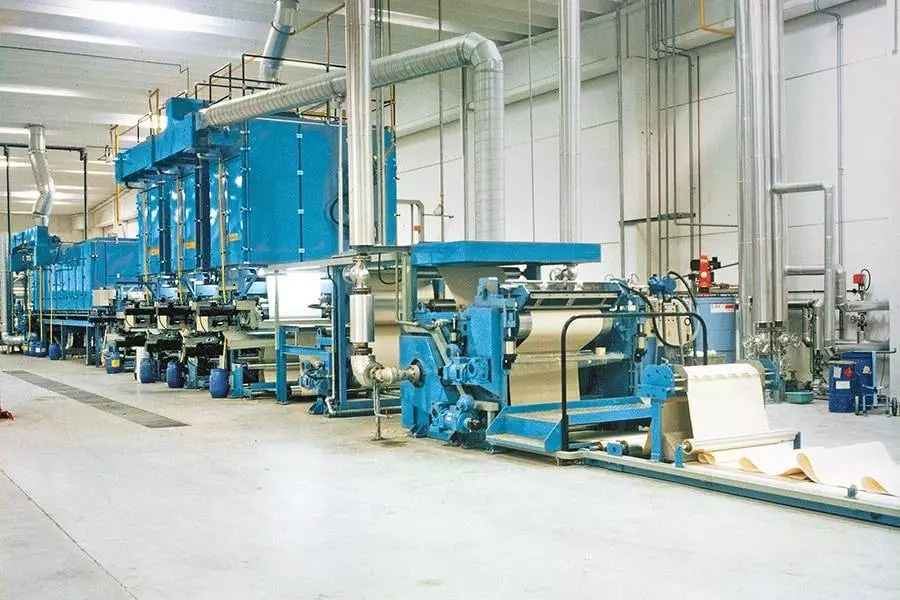

+ Screen Gravure and Emboss Combination Lines
Coating, Printing and embossing processes can be separate production lines or combined to give one production process.
The exact machine configuration is tailored to suit your needs. Coating is typically done by rotary screen with a extra tall hot air dryer so that coating does not become the bottleneck. Alternatively Reverse roll or Knife over roll coaters may be used with the hot air dryers or with the high performance gelling drums.

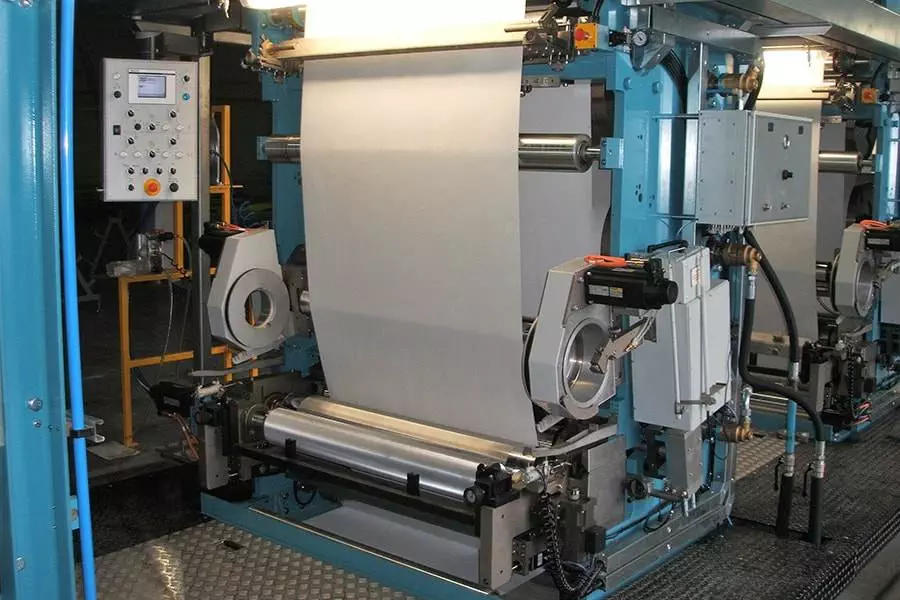

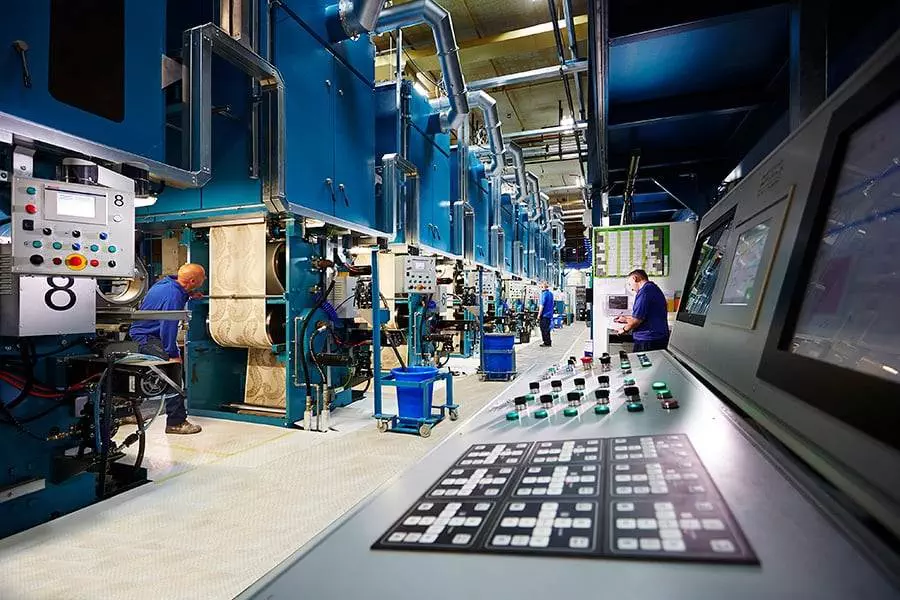

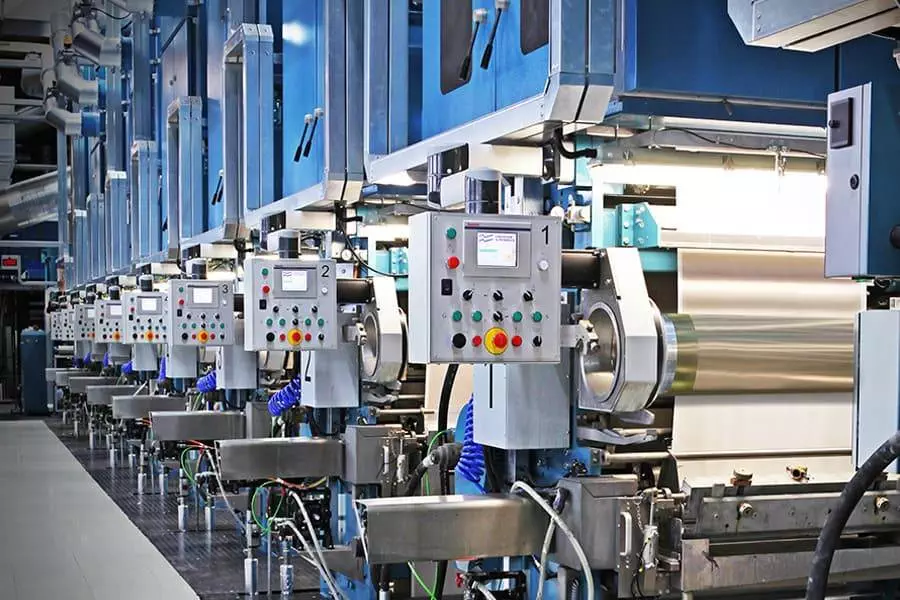

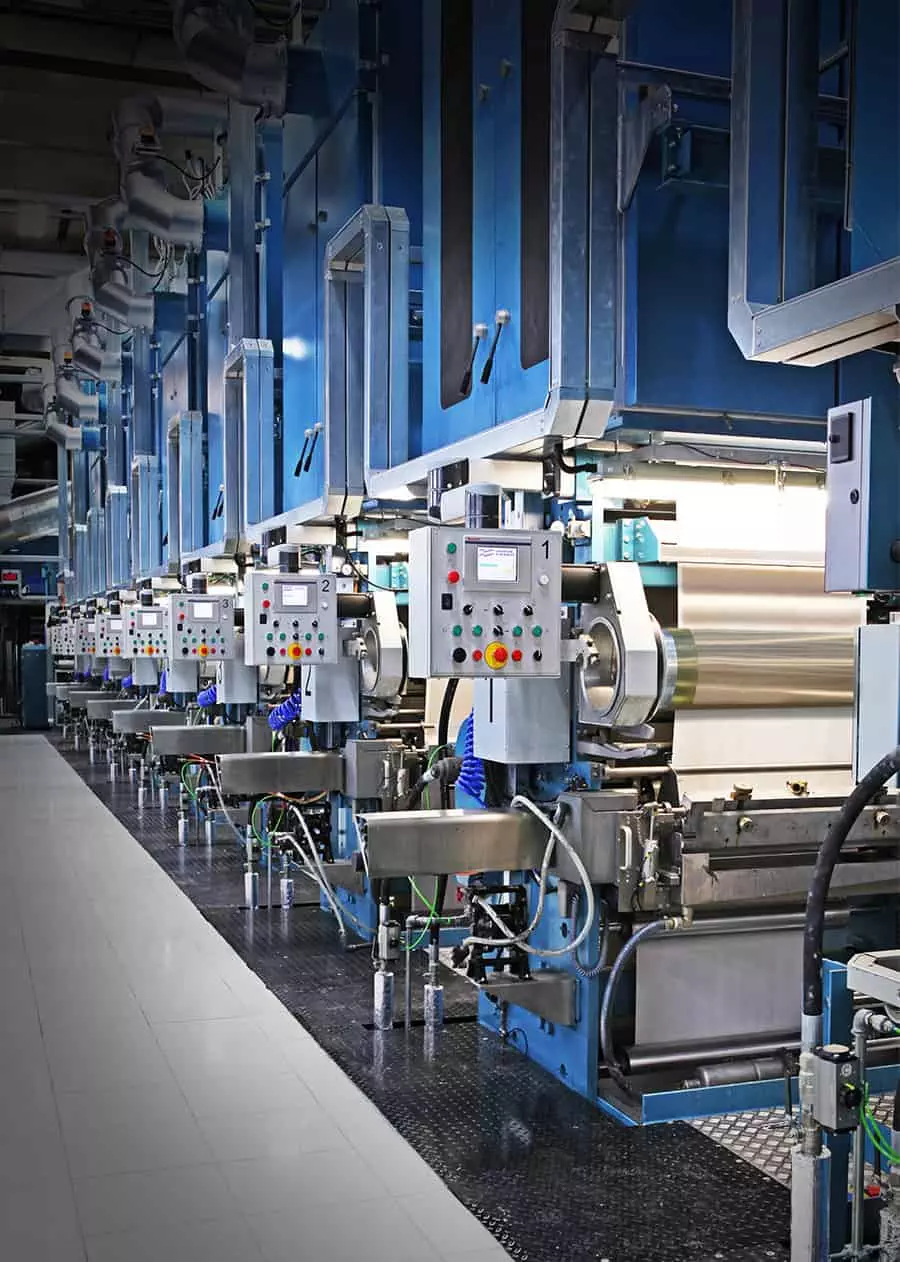

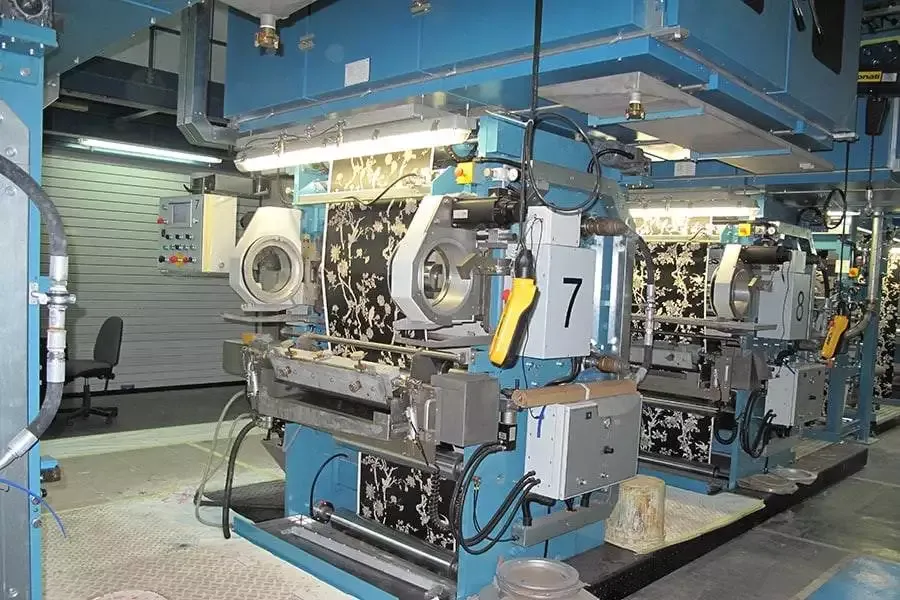

The individual print stations can be configured with screen, gravure or flexo print heads and as many stations as you require to give you the machine profile that exactly matches your production requirements.
A high performance drying oven gives the required even energy transfer to expand or cure the pvc and enable quality embossing.

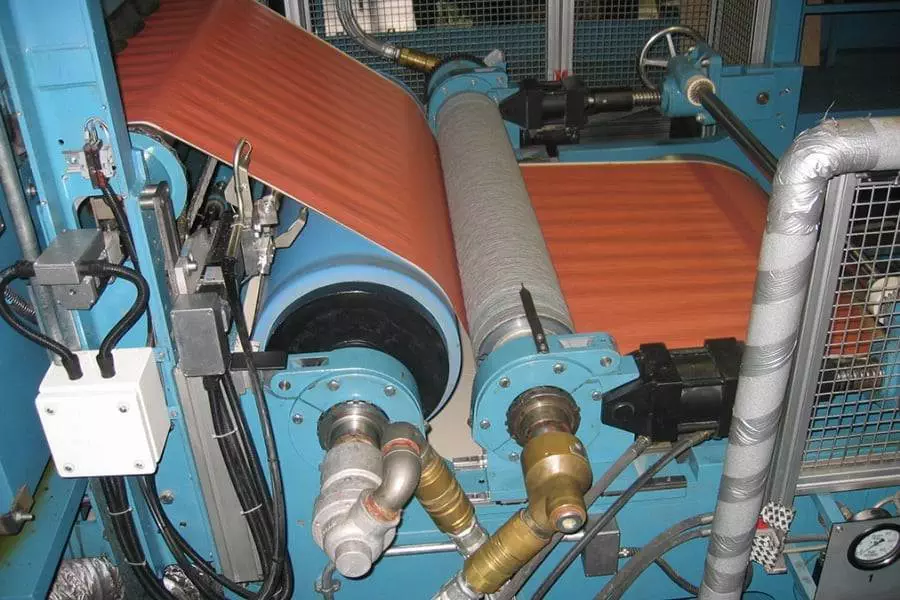

There are also several options for the embosser with variable width and wrap, turretting or standard all being possible.
So by selecting from the options above and by adding other features such as Washcoating, not contact thickness monitoring, or granulate dispensing you can select a machine configuration that is unique to you.
+ Custom development for single and multi-station emboss combination lines & print combination lines
Whatever the needs of your market place the E+R technical team has expertise in dealing with combination Coating lines, Printing and embossing processes into one streamlined production process or create high efficiency stand alone systems each configured to suit your needs.
Stations can include gravure, screen or flexo printing modules and be combined with vertical dryers of 4, 7 or 10 meter internal web drying lengths. Any printing station format is available to make your machine truly unique.
Our objective is to provide you with the ultimate solution that completely matches your needs, so our engineers will work with you from the concept stage to ensure you have the best possible design.
Advanced development for printing, wallpaper and wallcovering machinery
+ Engineering Capabilities
Experienced mechanical and electrical assembly and installation engineers
- Wide experience across a diverse range of applications
- Mechanical assembly, set-up and calibration of machine sections in-house
- In-house panel build for control cubicles
- Installations completed globally, turn-key start-ups possible
- Factory layout, service’s, material flow, product handling Installation, commissioning and Operator training & Material Supplier introductions.
Machine shop for the manufacture of key components
- Equipment portfolio focussed on key elements of machinery – machine frames and ties, rollers, precision components
- Early/late shift pattern
- Complete ‘ownership’ of critical components
Toolroom for manufacture of precision components
- Precision equipment – wire EDM, CNC grinding and finishing
- Precision inspection and component validation equipment – CMM, Jodon etc.
Certified to ISO 9001: 2015 quality system
- Component inspection and quality validation
- Assembly validation and sign-off at FAT and SAT
- View our Quality Policy Click here
+ Manufacturing Capabilities
Experienced mechanical and electrical/control engineering team
- 18 full-time engineers
- Web transport, roller design, web guiding, spreading etc.
- Drying technologies
- Coating technologies
- Machinery sub-systems – pneumatics, hydraulics, cooling systems, vacuum
Mechanical design in 3D drafting system with sophisticated FEA
- Complex stress analysis of vacuum vessels ensures optimal design
- Stress deflection analysis for optimal precision and accuracy
Full control systems design – hardware and software
- Electrical control cubicles, HMI and operator pendants
- Wide variety of vendors – Rockwell, Siemens, Bosch Rexroth, Mitsubishi etc.
- Fully compliant safety systems
- Software design and implementation
- Complex drive algorithms – registration, dynamic positioning, tension sensitivity and processing
- Testing and commissioning of systems by E+R staff
+ Advanced coating, printing and embossing machines for the printing, wallpaper and wallcovering market
+ Commercial Wallcovering Lines
High-speed printing, laminating and embossing machinery with special features for commercial needs.
+ Coating Machines
The full range of coating machines ideal for wallpaper and wallcovering production.
+ Gravure Printer
Special features make colour change quicker and improve press utilisation.
+ Flexo Printing
Custom manufacturing of flexo printing equipment from the development of full flexo printing lines to the creation of integrated flexo printing modules onto your existing workflow.
+ Embossing Machinery
World-renowned embossers used by leading European wallpaper manufacturers.
+ Piece Winders
Whether its rewinding a web into a large diameter reel for further processing or winding finished rolls of wallpaper ready for wrapping we have range of options for you at various widths.
+ Retrofit and re-drives
We're Specialists in the retrofitting and redriving of existing machines - whatever the manufacturer
