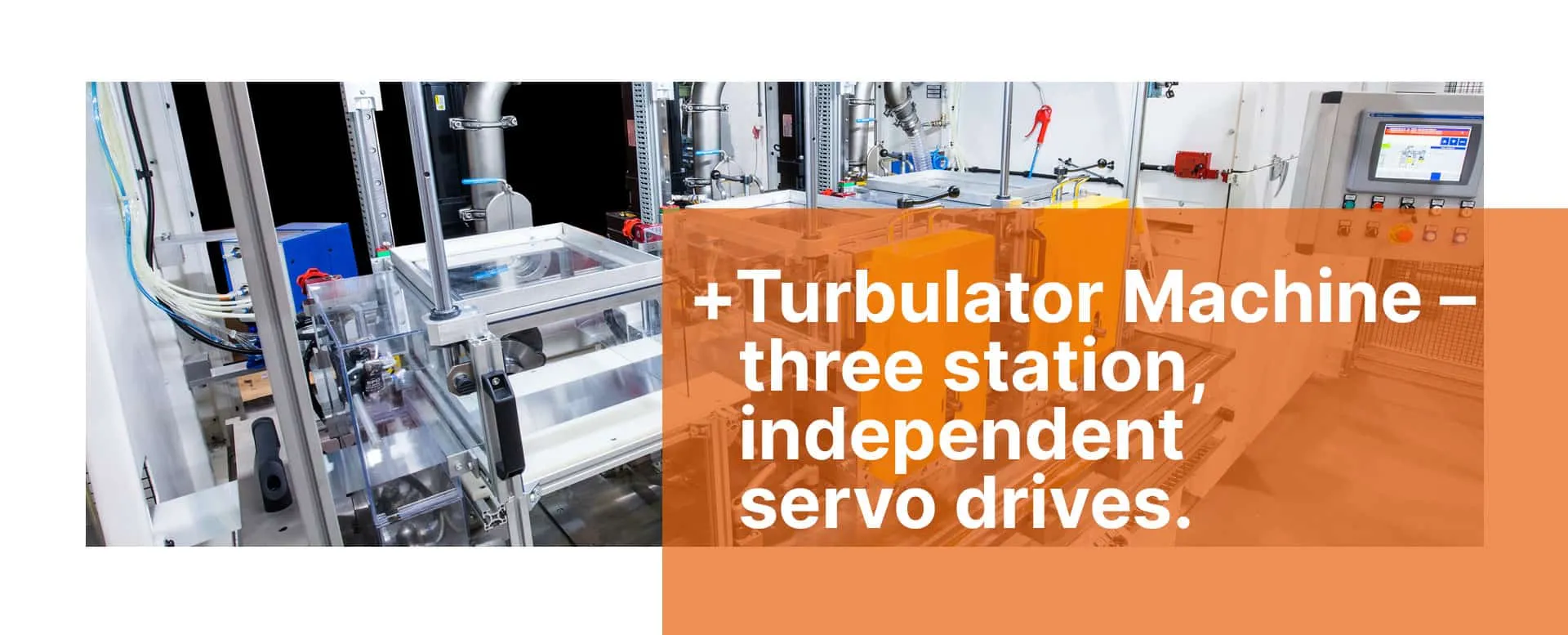

+ Turbulator Machine
We produce robust and flexible machines for the manufacture of turbulator machine products in WCAC (Water Cooled Charge Air Coolers), Oil cooler and ATOC (Air Transmission Oil Cooler) applications.
Prototyping capability available prior to purchase of turbulator production tooling.
Our turbulator production machinery is ideally suited to the production of EV vehicle cooling systems. Feel free to talk to our Special projects team about your own individual application.

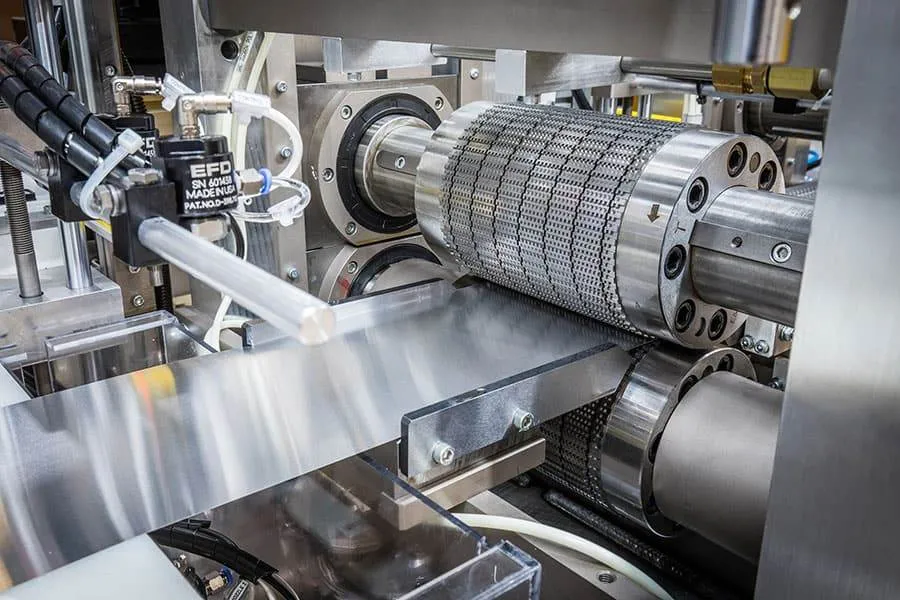

- Guillotine capable of cutting in the root, peak or centre of turbulator
- Standard configuration: 310mm strip width and 150 cuts/min
- Capacity for up to 3 forming stations
- Automatic strip width detection
- Independent servo drive for each cassette
- Optional Turbulator stacking
- Optional Integrated inline degreasing
- Fully bespoke options are available
+ Custom development for all Heat Exchange applications
Our objective is to provide you with the ultimate solution that completely matches your needs, so our engineers will work with you from the concept stage to ensure you have the best possible design.
We are able to design and manufacture a range of form and tube mill rolls to suit your machinery irrespective of the origin or type. We will regrind or remake your existing rolls either in HSS or Carbide, the choice is yours.
Advanced Forming Machinery, Tube Forming Machinery & Heat Exchanger development
+ Engineering Capabilities
Experienced mechanical and electrical assembly and installation engineers
- Wide experience across diverse range of applications
- Mechanical assembly, set-up and calibration of machine sections in-house
- In-house panel build for control cubicles
- Installations completed globally, turn-key start-ups possible
Machine shop for the manufacture of key components
- Equipment portfolio focussed on key elements of machinery – machine frames and ties, rollers, precision components
- Early/late shift pattern
- Complete ‘ownership’ of critical components
Tool room for manufacture of precision components
- Precision equipment – wire EDM, CNC grinding and finishing
- Precision inspection and component validation equipment – CMM, Jodon etc.
Certified to ISO 9001: 2015 quality system
- Component inspection and quality validation
- Assembly validation and sign-off at FAT and SAT
- View our Quality Policy Click here
+ Manufacturing Capabilities
Experienced mechanical and electrical/control engineering team
- 18 full-time engineers
- Web transport, roller design, web guiding, spreading etc.
- Drying technologies
- Coating technologies
- Machinery sub-systems – pneumatics, hydraulics, cooling systems, vacuum
Mechanical design in 3D drafting system with sophisticated FEA
- Complex stress analysis of vacuum vessels ensures optimal design
- Stress deflection analysis for optimal precision and accuracy
Full control systems design – hardware and software
- Electrical control cubicles, HMI and operator pendants
- Wide variety of vendors – Rockwell, Siemens, Bosch Rexroth, Mitsubishi etc.
- Fully compliant safety systems
- Software design and implementation
- Complex drive algorithms – registration, dynamic positioning, tension sensitivity and processing
- Testing and commissioning of systems by E+R staff
+ Advanced Forming Solutions
+ Tube Mill
Runs at 150 metres and 300 cuts per minute. Quick changeover – change from one model to another easily within 30 minutes.
+ Tube Collection Systems
Designed to collect folded tubes for storage in trays or paper band tubes at up to 300 tubes/min. Accommodates tube lengths from 130mm – 1200mm.
+ Turbulator Machine
Robust and flexible machine capable of up to 310mm strip width and 150 cuts/min.
+ Fin Mill
Capable of single or twin lane operation and up to 75 cuts and 250 per minute. Built to exacting standards with both single and twin track production.
+ CAC Tube Mill
Designed to be flexible - has a sub plate design to allow for quick changeovers between different products. Capable of producing tubes up to 100mm high.
+ Fin / Tube Insertion
Systems available to suit CAC or ATOC fin / tube insertion. CAC tubes up to 60 tubes/min, ATOC tubes with 2 internal fins 20 tubes/min.
+ Core Assembly / Core Builder
Manual output machine and fully automated solutions available.
